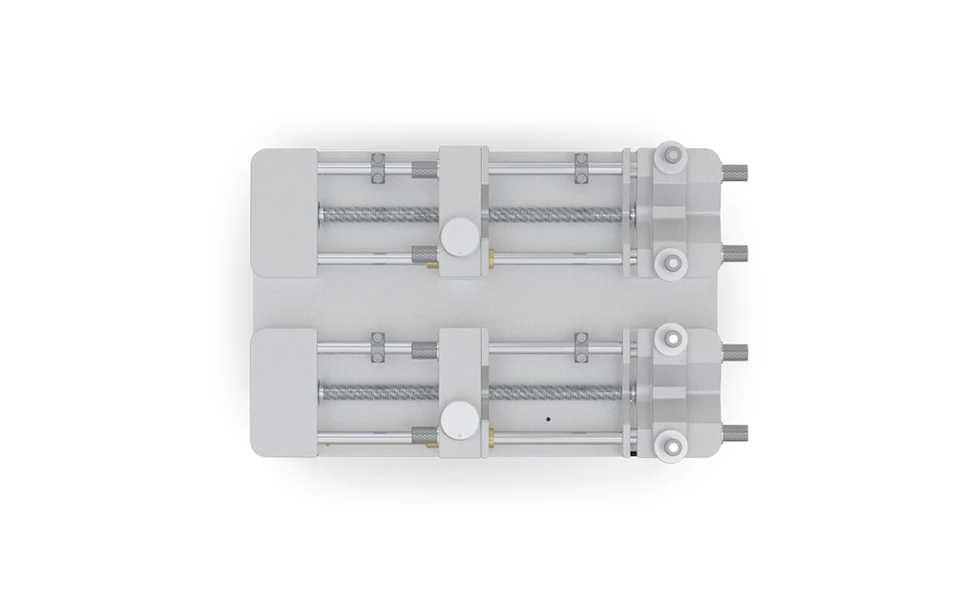

chemyx OEM 4000 syringe pump
chemyx OEM 4000 syringe pump

OEM Fusion 4000-X Module

BOLT-ON INDEPENDENT DUAL CHANNEL
INFUSE & WITHDRAW MICROFLUIDIC PUMP
FOR ANY INSTRUMENT

Fusion 4000X OEM is a bolt-on microfluidic syringe pump module designed for integration into customer-made analytical instruments requiring precision flow functionality with removable syringes. With the same specifications of Fusion 4000X syringe pump, the Fusion 4000X OEM module is configured with dual motors and two independently controlled precision syringe pump channels that allow independent dual-rate, push-pull, pulseless, reproducible flow rates, and oscillatory flow requirements for difficult research applications such as lipid nanoparticles, microfluidic mixing, and microfluidic flow control in drug formulation applications. The capability of adding two dual-syringe racks allows the Fusion 4000X OEM to hold four syringes. Like other OEM systems, the Fusion 4000X OEM micro syringe pumps can be controlled by a computer via Teraterm or a customer-created computer program.

  • Integrate into other analytical instruments
  • Holds syringes from 0.5µL to 100mL
  • Rates from 0.001 µL/min to 170.5 mL/min
  • Control via USB, RS232, TTL
  • 2-Year* Limited Warranty
  • Power Adapter Included
  • Serial Commands
  • Available Accessories

$3,349.00

ModeInfuse & Withdraw
Accuracy± < 0.35%
Reproducibility± <0.2%
Syringe Size (Min/Max)0.5µL to 100mL
Syringe Flow RatesSee Syringe Library for Min & Max Flow Rates
Minimum Flow Rate0.0001 µL/min (with 0.5µL syringe)
Maximum Flow Rate170.5 mL/min (with 100mL syringe)
Linear Force90Lb (40.82kg)
DisplayNone
ConnectivityUSB-B, RS232 and TTL Ports
System Dimensions11.3 x 7.1 x 7.5 inches (28.7 x 18 x 9 cm)
Power24V DC 4.6A
Weight15lbs (7kg)
Motor Drive1.8˚ MicroStepper Motor
Step Resolution0.0293 µm/step
Operating Temperature4°C to 40°C (40°F to 104°F)
Storage Temperature-10°C to 70°C (14°F to 158°F)
Humidity20% to 80% RH, non-condensing
Installation CategoryII
Regulatory ComplianceCE, RoHS, REACH, FCC
Syringe TypePlastic and Glass
Chemyx Fusion 4000X OEM Syringe Pump
Modular Addition to any Analytical Instrument

The Chemyx OEM bolt-on microfluidic pump is a perfect add-on to any instrument or apparatus and can draw minimal power from on-instrument power supplies. The OEM syringe pump can use any glass, metal, and micro-syringes. We also partner with equipment manufacturers to provide integrated OEM liquid handling solutions for a variety applications.

Chemyx Fusion 4000X OEM Syringe Pump
Pulseless Reproducible Flow Rates

The Chemyx OEM syringe pumps contain precision machined components and microelectronics in an easy to integrate module. These OEM module systems are designed to be integrated into other analytical instruments and are ideal for benchtop, laboratory and process environments requiring precision infusions at pulse less, reproducible flow rates.

Machined Components Built to Last

Chemyx OEM syringe pumps are precision machined with metal components for the level of accuracy needed for micro flow applications and for both chemical resistance and mechanical wear. This OEM module system provides accurate dosing while handling viscous and chemically aggressive liquids as well as shear-sensitive products with microflow performance. Chemyx high-precision pumps last for years with an equipment value that is hard to match.

  • Machined metal design
  • Chemical resistant polypropylene coated screen
  • 2-year* limited warranty

Wide Range of Communication Options

Remote computer control capabilities are available through USB, TTL, and RS232 communication connections and are compatible with embedded systems to PCs to PLC devices. Our protocols are operating system independent meaning any OS from Windows to MAC OS to Linux are compatible and will allow users to program and customize flow profiles.
