Fusion 4000 Dual Independent Channels
Syringe Pump

Upgraded to Fusion 4000X

The Chemyx Fusion 4000 is an independent dual-channel infusion and withdrawal syringe pump. This multi-channel infusion pump is one of the most unique and advanced lab syringe pump systems on the market. Fusion 4000 has two independent motors controlling two precision syringe pumps on one platform. The multi-channel infusion pump comes with programmable step-rate functionality and cycle mode which allow this syringe pump to perform complex liquid handling procedures, such as ramping rate, push-pull, pulseless, reproducible flow rates, oscillatory, and continuous flow requirements for difficult research. The syringe pump applications include lipid nanoparticles, microfluidic mixing, and microfluidic flow control in drug formulation applications. With an all-glass touchscreen interface and machined metal design, the Fusion 4000 independent dual-channel syringe pump is chemical resistant, easy to clean, and has highly superior durability for lab environments of all types. Backed by Chemyx’s 2-year limited warranty, you can have confidence with this multi-channel infusion and withdrawal syringe pump for reliability and precision for years of service.

  • 2 Independent pump channels
  • Holds stainless steel syringes from 0.5mL to 100mL
  • Chemyx syringe pump rates from .0001 µL/min to 170.5 mL/min
  • Control via touchscreen, USB, RS232, TTL
  • Free Programmable Mode Included
  • 2-Year Limited* Warranty
  • Available Accessories
Accuracy± < 0.35%
Reproducibility± < 0.05%
Syringe Size (Min/Max)0.5µL to 100mL Stainless Steel Syringe
Syringe TypePlastic, Glass and Stainless Steel Syringe Type Chart
Syringe Flow RatesSee Syringe Library for Min & Max Flow Rates
Minimum Flow Rate.0001 µL/min (with 0.5 µL syringe)
Maximum Flow Rate170.5 mL/min (with 100mL syringe)
Linear Force75lb (34kg)
Maximum PressureSee Max Pressure
Display4.3 inch LCD Glass Touch Screen
ConnectivityUSB-B, RS232 and TTL Ports
System Dimensions11 x 12 x 4.9 inches (28 x 31 x 13 cm)
Power110/220 VAC , 60 W
Weight19 lbs (8.6kg)
Motor Drive1.8˚ Stepper Motor with Micro-stepping
Step Resolution0.0293 µm/step
Operating Temperature4°C to 40°C (40°F to 104°F)
Storage Temperature-10°C to 70°C (14°F to 158°F)
Humidity20% to 80% RH, non-condensing
Installation CategoryII
Regulatory ComplianceCE, RoHS, REACH, FCC

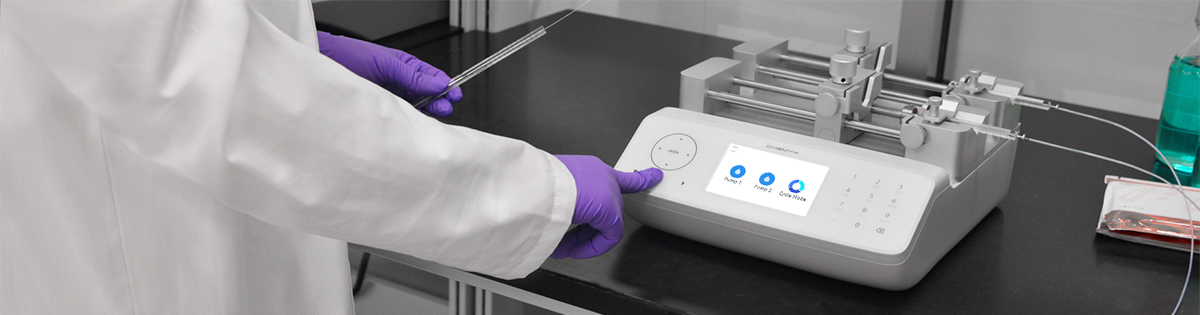

Syringe Pump in Laboratory
Dual Independent Pump Channels

The Fusion 4000 multi-channel syringe pump comes with a dual drive system to allowing two independent pumping channels to be controlled for simultaneous infusion and withdrawal at same/different flows. This allows both syringes to operate in a variety of different ways to accommodate a wide range of applications.

The Fusion multi-channel syringe pumps infuse and withdraw solutions at extremely high precision, and has reproducible flow rates via a state of the art microstepper motor. Easily and effortlessly deliver a wide range of flow rates in precise amounts for a multitude of applications like microfluidics, injections into a reactor, mass-spec calibration, and neuro-drug delivery to animals.

Fusion 4000 Syringe Pump
Complex Flow Controls

The Fusion 4000 multi-channel syringe pump allows both channels to be controlled independently. This allows the infusion system to dose variable-size syringes at different rates, for example, a saline & drug combination infusion or a catalyst & co-catalyst reagent addition into a reactor. Additionally, the Fusion 4000 multi-syringe pump also comes with continuous cycle mode (push-pull functionality) that will oscillate the syringe the 2 pump channels to provide non-stop flow.

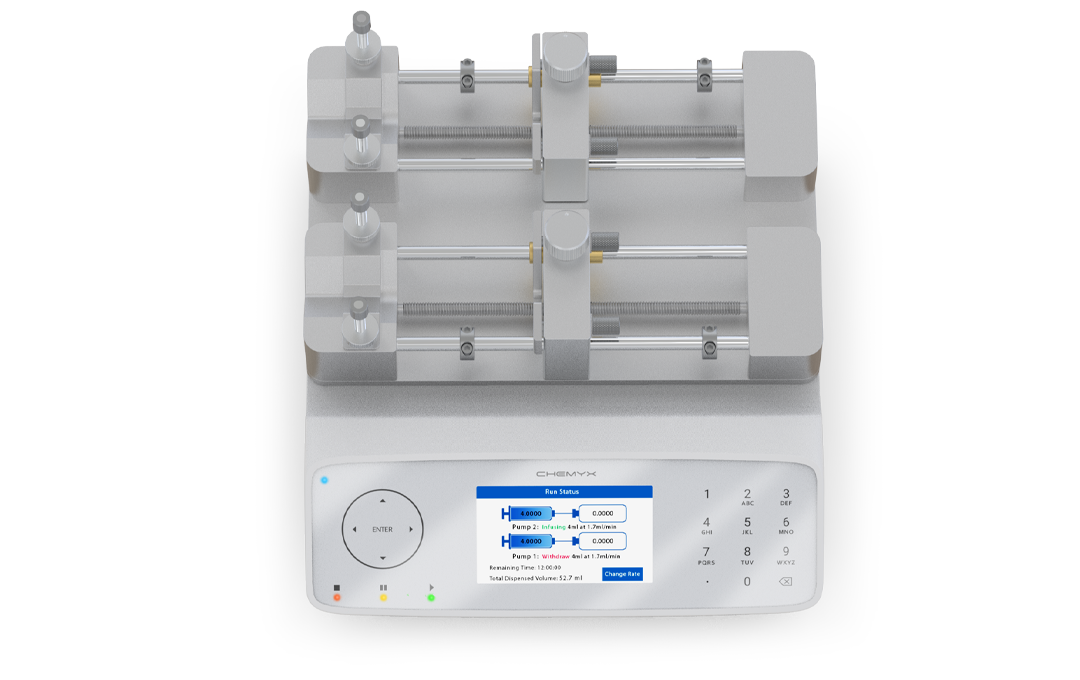

Fusion 4000 Syringe Pump - Top View
Resistant Glass Machined Components Built to Last

Chemyx multi-channel syringe pumps are precision machined with metal components for a level of accuracy needed for microflow applications and for both chemical resistance and mechanical wear. Chemyx high precision infusion pumps last for years with an equipment value that is hard to match.

  • Machined metal design
  • Chemical resistant polypropylene coated screen
  • 2-year warranty

Programming Fusion 4000 Syringe Pump
Programmable & Intuitive

Intuitive, user-friendly software lets users program and customize flow profiles and offers a robust database of brand-name syringes. Remote computer control capabilities are available through USB, TTL, and RS232 communication connections.

  • Programmable variable rate profiles via keypad
  • Computer control via USB, RS232, TTL
  • LabVIEW and MATLAB drivers available

Product Information

image Specifications Sheet
image Product Manual

Support Articles

How Do Chemyx Syringe Pumps Work?

A syringe pump is a small, positive-displacement pump used to gradually transfer precise volumes of fluid. Chemyx Fusion Series syringe pumps are all driven via a stepper motor. A lead screw, threaded through a pusher block, precisely turns the pump’s stepper motor. This causes the pusher block to move. The fluid ejects at an accurate […]

Common Reasons For Syringe Leakage

The components of even the most durable syringe will eventually fail. The most common symptom of failure may be leakage of your solvent from the syringe. The following are some common reasons for syringe leakage, as well as our recommended solutions. 1. Tip Connection The most common symptom of failure may be leakage of your solvent from the syringe. If your syringe […]

What To Do If Your Chemyx Syringe Pump Stalls?

If you are starting to experience stalling issues with your Chemyx syringe pump system, there are a few questions to determine the root cause and get your motorized syringe pump working again. Does the pump stall without any syringes? If not, then the stall may have been caused by too much back pressure. Try using a smaller syringe and/or setting […]

The Difference Between The NEW Chemyx Fusion 4000-X and Fusion 4000 Independent Channels Syringe Pump

The Chemyx Fusion 4000-X Independent Channels Syringe Pump is an upgraded model of the Fusion 4000 Independent Channels Syringe Pump. Please see the comparison chart below for all of the new features of the Fusion 4000-X  and the Fusion 4000 Independent Channels Syringe Pump. Features NEW Fusion 4000-X Fusion 4000 *Dual Syringe Holding Rack Available Not […]
