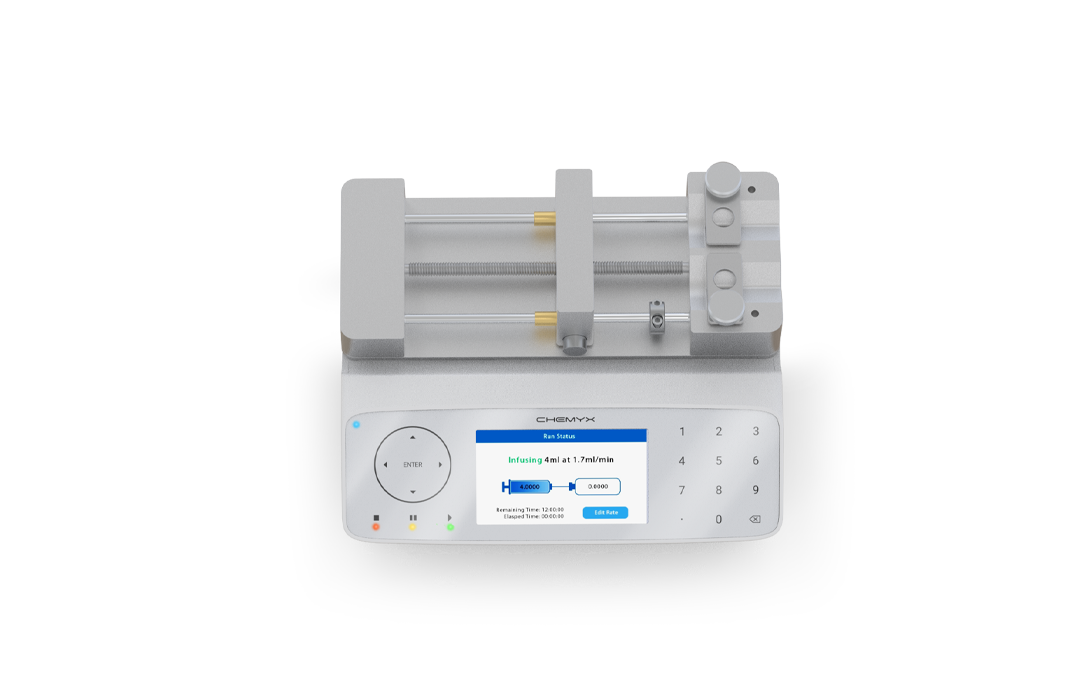

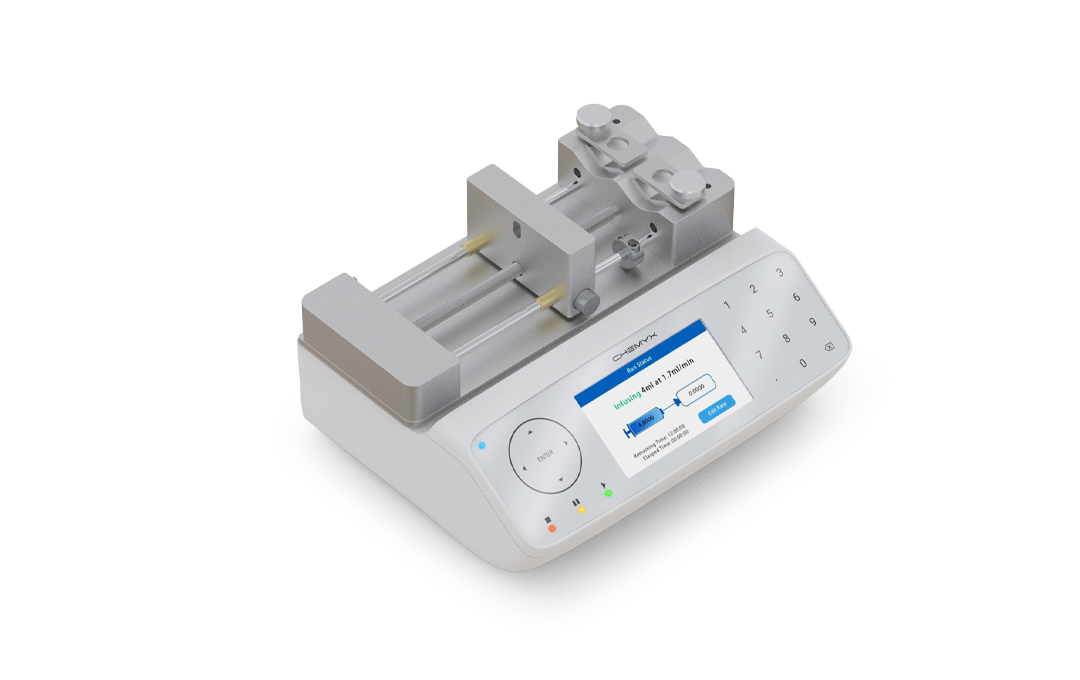

Fusion 100X Syringe Pump

The Fusion 100X syringe pump is a programmable modular dual-channel precision infusion syringe pump.

This multiple syringe pump has the following features:

  • Two syringes to infuse simultaneously
  • Full-glass chemical resistant touch screen
  • Programmable multi-step mode, computer control with LabVIEW and other programs
  • Add on an 11-syringe push rack to increase the syringes used to eleven

The Fusion 100X can be used for dispensing/dilution, organ/tissue perfusion, and fluid circulation in chemical, pharmaceutical, and biotech R&D.

  • Holds syringes from 0.5µL to 60 mL
  • Rates from 0.0001 µL/min to 157 mL/min
  • Control via touchscreen, USB, RS232, TTL
  • Free multistep programmable mode included
  • 11-channel Syringe Rack
  • 2-Year Limited* Warranty
  • Available Accessories

$1,899.00

Request Quote
Frequently Asked Questions

0.5µL(min) to 60mL(max),

0.5µL Syringes are microliter gastight glass syringes made by Hamilton Company or SGE Syringes.  60ml syringes are usually plastic polypropylene syringes made by AirTite or Becton Dickinson.

Any syringe that will fit under the syringe clamp can be used with the system regardless of material or construction. Plastic, Glass and Stainless Steel Syringe Type Chart.

  • 0.0001 µL/min (with 0.5µL syringe)
  • 85 mL/min (with 60mL syringe)

USB, RS232, and TTL Ports – The Fusion syringe pump system communicates to PCs via ASCII text commands. For help programming the system please see the Chemyx programming SDK link.

LABVIEW, LABWINDOWS, PYTHON, MATLAB

A 2-Year Warranty* comes standard with all Chemyx programmable syringe pumps.

Mode Infuse Only
Accuracy ± < 0.35%
Reproducibility ± < 0.05%
Syringe Size (Min/Max) 0.5µL to 60mL
Syringe Type Plastic, Glass and Stainless Steel Syringe Type Chart
Syringe Flow Rates See Syringe Library for Min & Max Flow Rates
Minimum Flow Rate 0.0001 µL/min (with 0.5µL syringe)
Maximum Flow Rate 85 mL/min (with 60mL syringe)
Linear Force 65lb (30kg)
Display 4.3 inch LCD Glass Touch Screen

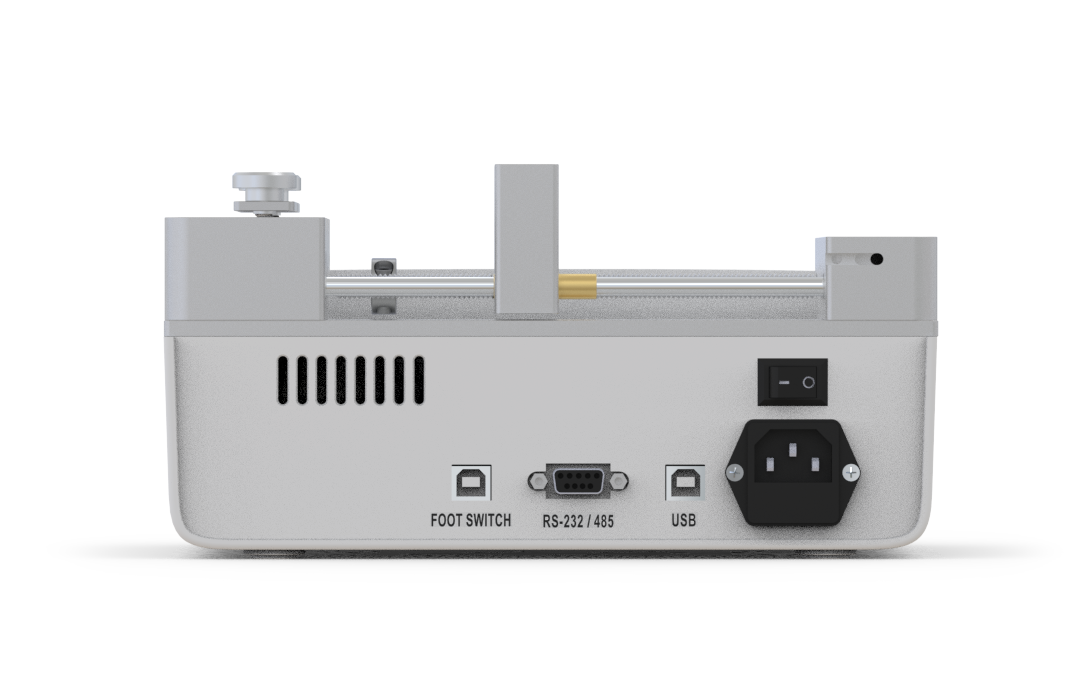

Connectivity USB-B, RS232 and TTL Ports
System Dimensions 9.5 x 8.0 x 4.9 inches (24 x 20 x 12 cm)
Power 110/220 VAC, 30W auto switching
Weight 7lbs (3kg)
Motor Drive 1.8˚ MicroStepper Motor
Step Resolution 0.0528 µm/step
Operating Temperature 4°C to 40°C (40°F to 104°F)
Multi Steps Program up to 99 step with looping steps
Parameter Setting Runs based on time or rate
Modular Capability Option to add a 11 syringe rack
Regulatory Compliance CE, RoHS, REACH, ETL
Microfluidic Flow Performance

The Fusion 100-X dual-channel syringe pumps infuses solutions at pulse less, reproducible infusion pump rates via a state-of-the-art microstepper motor. The dual-channel syringe pump easily and effortlessly delivers accurate and precise amounts of fluids for a multitude of applications like microfluidics, injections into a reactor, mass-spec calibration, and neuro-drug delivery to animals.

  • Supports a variety of precision microflow applications
  • Easy to operate touchscreen
  • Compatible with lab automation programs LabVIEW and MATLAB

Precision Machined Components

Chemyx infusion syringe pumps are precision machined with aluminum components for a level of accuracy needed for microflow applications and for both chemical resistance and mechanical wear. Chemyx high-precision infusion syringe pumps last for years with an equipment value that is hard to match.

  • Machined aluminum design
  • Chemical resistant polypropylene coated screen
  • 2-Year Limited* Warranty

Clear & Intuitive Programmable Touch Interface

Intuitive, user-friendly software on this infusion syringe pump lets users program and customize flow profiles and offers a robust database of brand-name syringes. Remote computer control capabilities are available on the Fusion 100-X dual-channel syringe pump through USB, TTL, and RS232 communication connections. Fusion dual-channel syringe pumps also are supported by LabVIEW / MATLAB drivers and are automation ready for coding software like C++, C#, and Objective-C via simple ASCII commands.

  • Programmable variable rate profiles via keypad
  • Computer control via USB, RS232, TTL
  • LabVIEW and MATLAB drivers available

Modular 11 Syringe Rack Attachments

The Fusion 100-X syringe pump can also add on a modular 4 or 11-Syringe Holder Rack option allows the Fusion Plus dual syringe pump to adapt to a wide variety of changing lab applications.

Specifications Sheet
Download
Product Manual
Download
