CHEMYX HP6-CF ULTRA HIGH PRESSURE SYRINGE PUMP

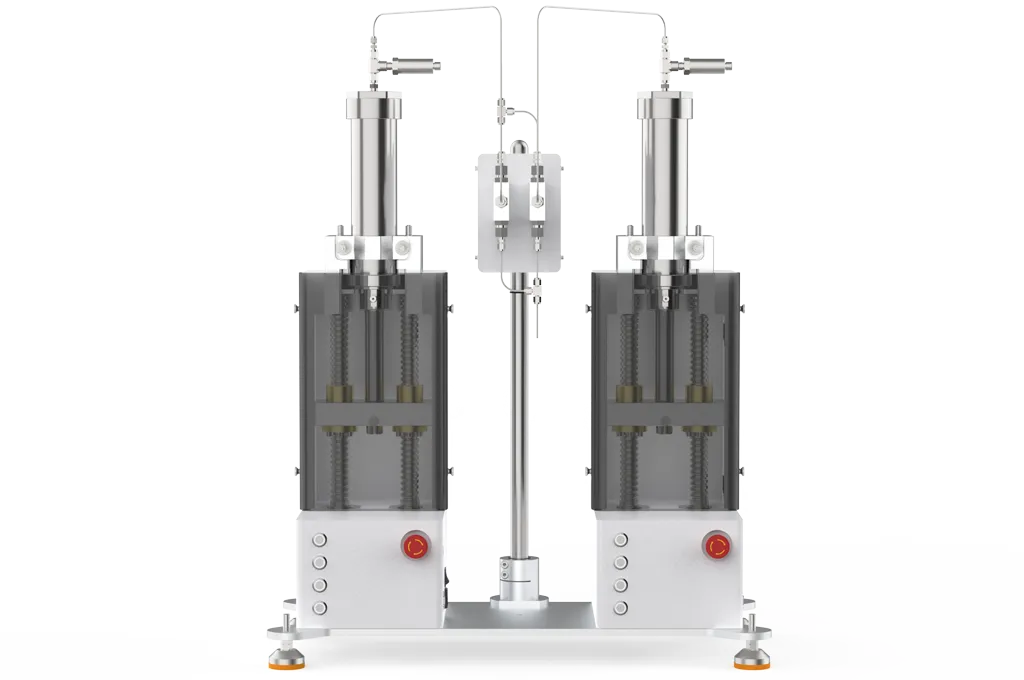

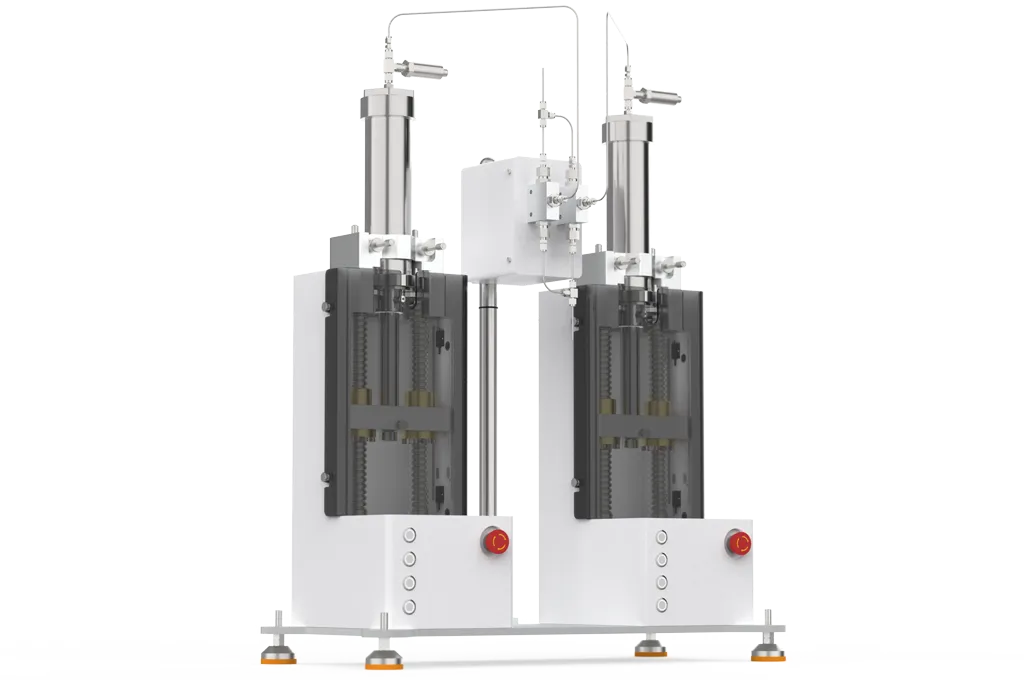

The Chemyx HP6-CF is a dual piston continuous flow ultra high pressure syringe pump. This system combines 2 HP6 systems with an automated synchronized valve set that allows for pump refill and dispense for continuous flow. Designed for the toughest applications from pilot plants, chemical synthesis, oil & gas, and plant based meats, this high-pressure syringe pump system provides constant flow under supercritical pressures.
The pressure cylinder on the HP6 is removable and swappable, make this the most flexible system on the market. Syringes also come in 6 sizes from 75ml to 1 liter. Nitronic 50 is the standard material for cylinders, pistons, and caps, standard seals are graphite-impregnated Teflon, providing long life under harsh operating conditions while being easy to clean. Additionally the valves can also be configured with Nitronic or Hastelloy C materials.
The patent pending dual lead screw design greatly increases service life 4 fold by distributing the force load across the platform.

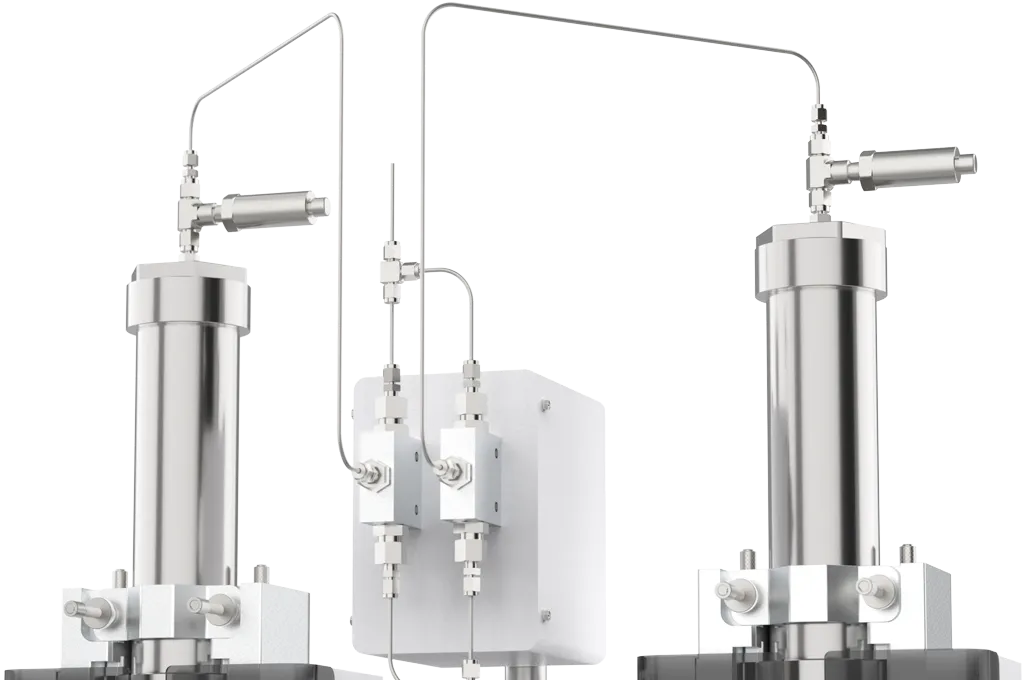

The system has two configurations: single-pump or dual-pump. With the continuous valve system (CVS), the dual pump system will provide a continuous, constant flow operation mode.
- Designed for ultra high-pressure
- Holds syringes from 90 ml to 1 liter in size
- Rates from 0.001 mL/min to 1L/min
- Control via PC control program, USB, RS232, TTL
- 2-Year Limited* Warranty
