Chemyx HP1 High Pressure Syringe Pump

Chemyx HP1 is a heavy-duty high-pressure syringe pump designed for elevated pressures in research, industrial, and manufacturing applications. This system delivers 1 Ton (2200 lbs) of pushing force and is the most powerful traditional benchtop linear syringe pump system on the market. This specialized high-pressure syringe pump is designed for demanding conditions associated with supercritical fluids, hydraulic fracturing, and nano-encapsulation which exist at temperatures and pressures beyond their critical points.
The HP1 high-pressure syringe pump is engineered with materials and components that can withstand challenging conditions often at pressures exceeding 10,000 psi, including heavy-duty drive shafts, high-performance drive transmission, and corrosion-resistant metal enclosure.
Additionally, the Hp1 high pressure syringe pump has optional pressure detection and syringe heaters for additional experimental condition control in materials science, pharmaceuticals, and environmental process analysis.

Syringe pump features:

1 ton (2200lbs) drive force
Infuse/withdraw programmable multi-step flow rates
Pressures over 10K psi, with both pressure detection
Holds syringes from 50mL-400ml rates from 0.01ml/min to 2061 ml/min
Control via glass touchscreen, USB, RS232, TTL - Computer control with LabVIEW, MatLab etc..
Syringe heater available
2-Year limited warranty

Request Quote

Mode	Infuse / Withdraw
Accuracy	± < 0.35%
Reproducibility	± < 0.2%
Syringe Size (Min/Max)	50mL to 400mL
Syringe Type	Stainless Steel Recommended
Syringe Heating Sleeve Temperature	Up to 80°C
Minimum Flow Rate	.0001 µL/min (with 0.5µL syringe)
Maximum Flow Rate	2061 mL/min (with 400mL syringe)
Linear Force	2200lbs (907kg or 1 Ton)
Maximum Pressure	10,000+ psi
Maximum Viscosity	2,000,000 - 5,000,000 cP
Display	4.3 inch LCD Touch Screen

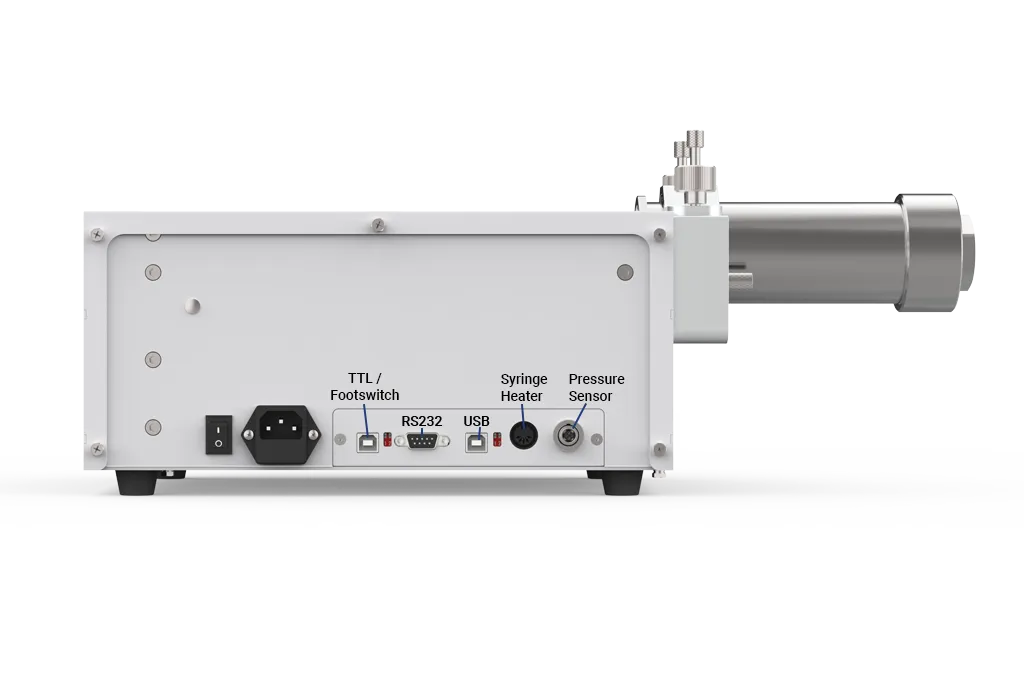

Connectivity	USB-C, USB-B, RS232 and TTL Ports
Power	110/220 VAC
Weight	46lbs (21kg)
Motor Drive	1.8˚ MicroStepper Motor
Step Resolution	0.15625 µm/step
Operating Temperature	4°C to 40°C (40°F to 104°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Humidity	20% to 80% RH, non-condensing
Installation Category	II
Regulatory Compliance	CE, RoHS, REACH, ETL

Designed For High Pressure

The advanced HP1 is high-pressure syringe pump engineered to deliver highly viscous fluids with exceptional precision under consistent flow rates and elevated pressures. This system boasts a linear force capability of up to 2000lb making it an essential tool for industries where high-pressure fluid handling is needed in critical processes.

Precision Meets 2000lbs Linear Force

Like all Chemyx syringe pumps, the HP1 high pressure syringe pump uses a micro stepping technology to achieve sub-micron movement resolution and when combined with a precision engineered gear train transmission, greatly increases the force to 20-50 times over standard syringe pumps to 2000lbs linear force.

Optimized for Engineering Workflow

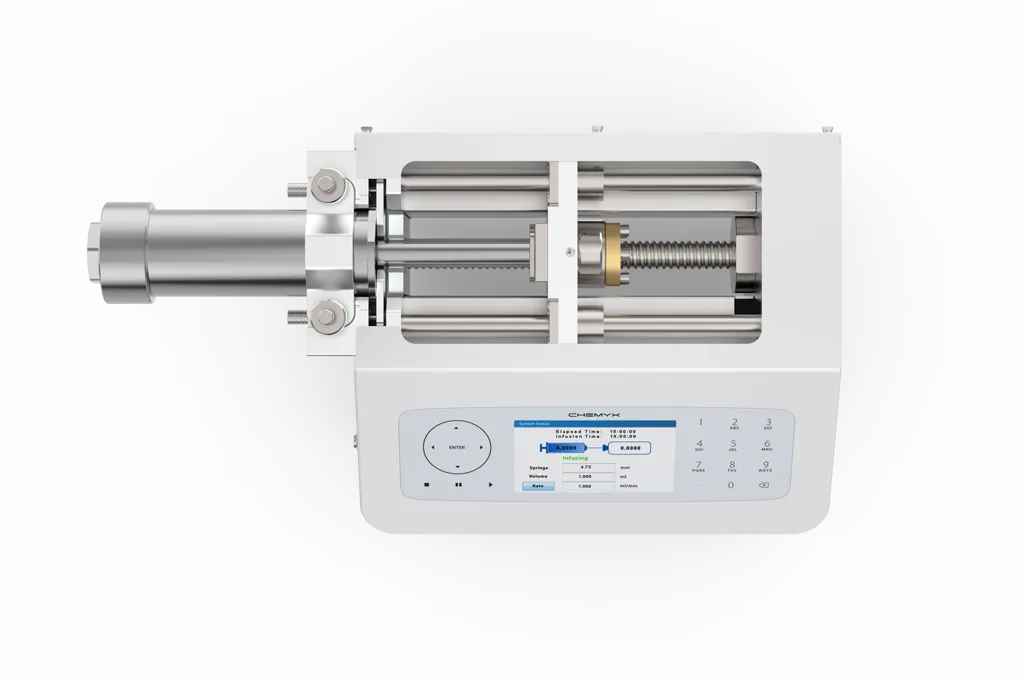

The HP1 high pressure syringe pump is engineered for realistic demanding work conditions. The system features a metal enclosure with a central spill pass through that allows for easy cleaning while high pressure operating conditions. This allows researchers and engineers to efficiently optimize applications in oil and gas, water treatment, and manufacturing, where the ability to move fluids under high pressure is essential for various processes and systems.

Match Operating Conditions

Additionally, pressure detection and syringe heaters allow the HP1 to mimic real world conditions for materials science, pharmaceuticals, and environmental process analysis.
