Pressure Sensor for Fusion 6000X with Fittings

Item No: 50011

$799.00

In Stock - Same Day Shipping

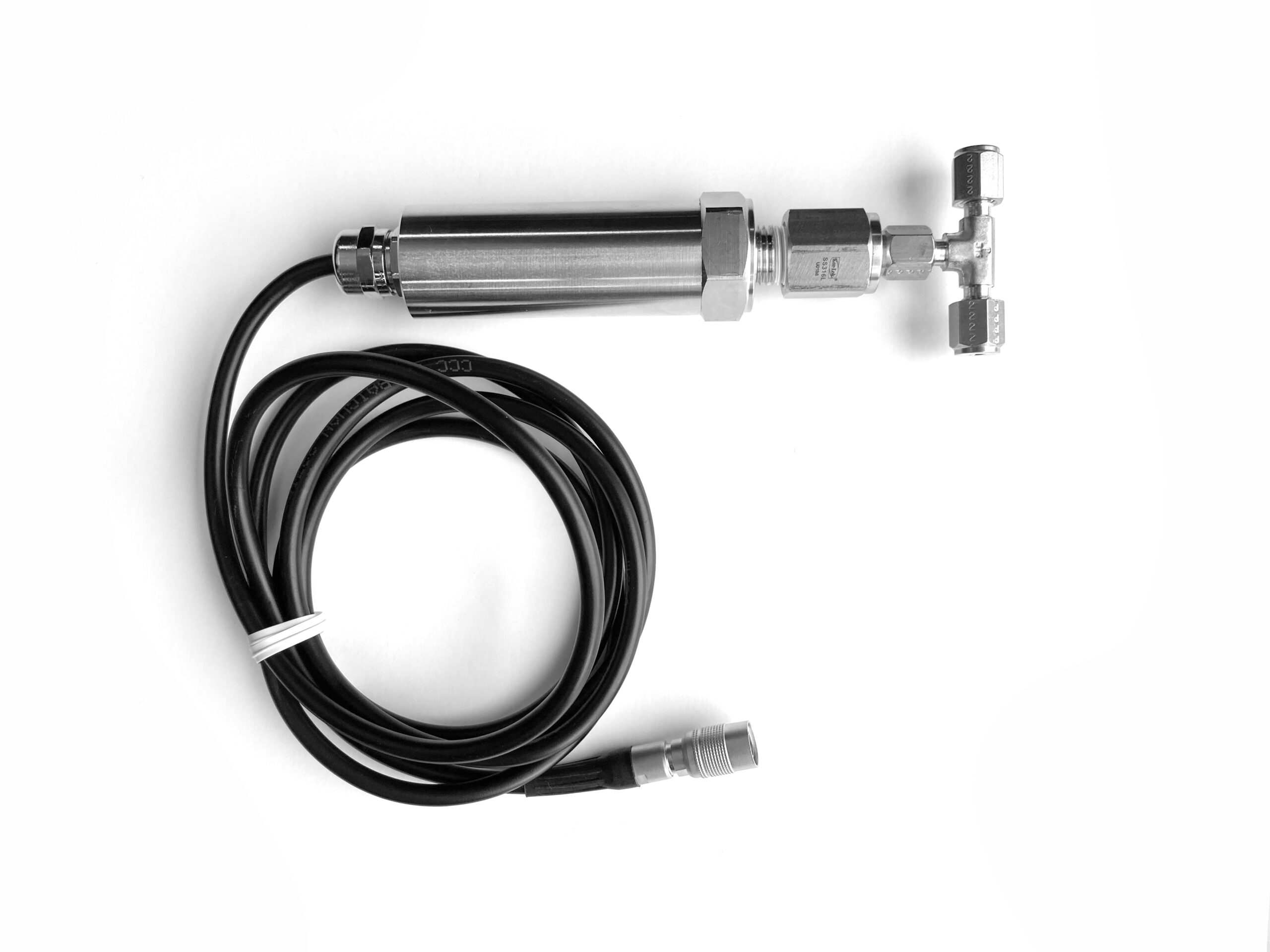

This Chemyx infusion pump pressure sensor works for Fusion 6000/X syringe pumps only. Using a pressure sensor allows the syringe pump to maintain and monitor a user-defined pressure inside the stainless-steel syringe. To connect the infusion pump pressure sensor with a syringe, you should connect to a Syringe fitting 1/8 NPT x 1/8 tube OD. After setting up the syringe pump pressure sensor, the pressure reading will be displayed on the pump screen.

  • The measurement range of the pump pressure transducer is up to 2000 PSI
  • The full range accuracy is 0.5%
  • Response time is 1 second
  • The minimum reading is 0.2 PSI

Please refer to the links below of how to connect the pressure sensor to the pump.
How To Connect Pressure Sensor To The Fusion 6000
Pressure Control and Setting for Fusion 6000 High-Pressure Pump
