Fusion 6000-X OEM Module

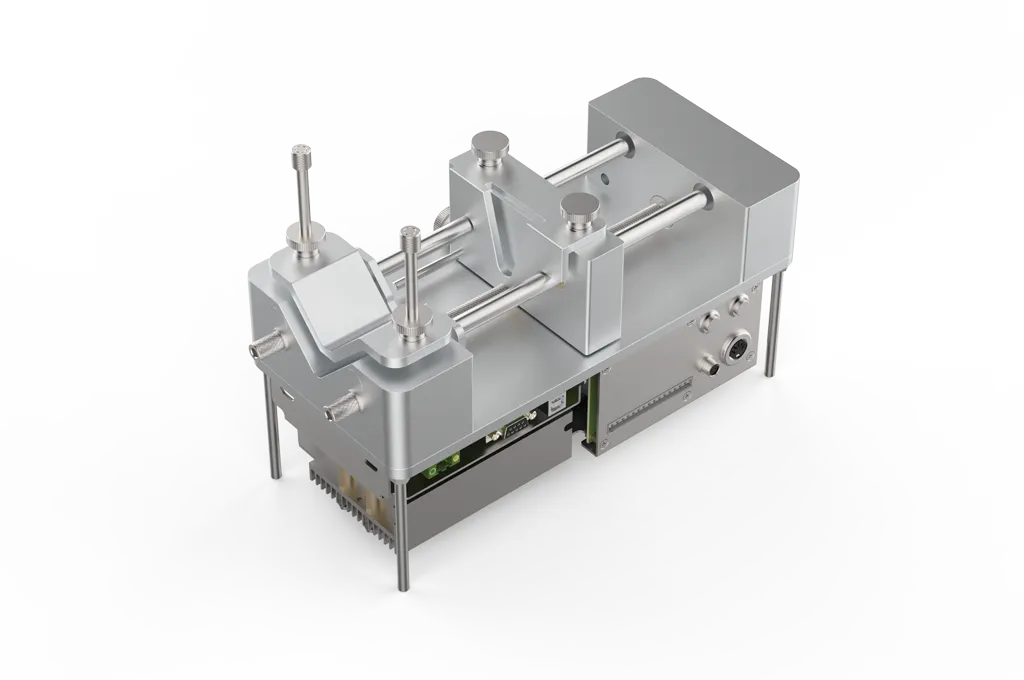

Chemyx Fusion 6000X OEM module is a bolt-on high-pressure syringe pump module designed for integration into customer-made analytical instruments for dosing viscous solutions and semi-solid material against pressure with microfluidic pump precision.

With the same specifications as the portable Fusion 6000X, the bolt-on Fusion 6000X OEM high-pressure syringe pump is configured with the following unique features:

• 700 lbs linear pushing force
• Priming buttons to easily adjust the plunger's position
• Modular 4 syringe expansion pack
• Can add on a syringe heater jacket to warm the contents of one syringe.
• Capable of adding a pressure sensor for syringe pressure monitoring and control

These features allow the Fusion 6000X OEM module to work against high back pressure while warming a syringe's contents with pressure monitoring and control. Like other OEM modules, the Fusion 6000X OEM high-pressure syringe pump can be controlled by a computer via TeraTerm or a customer-created computer program.

• Syringe pump for high-pressure applications
• Temperature and pressure control options
• Prime Buttons for easy syringe adjustment
• Holds stainless-steel syringes from 5mL to 300mL
• Rates from 0.0001 mL/min to 408 mL/min
• Control via touchscreen, USB, RS232, TTL
• Free Programmable Mode Included
• 2-Year Limited^* Warranty
• Patent Pending
• Power Adapter Included
• Available Accessories
